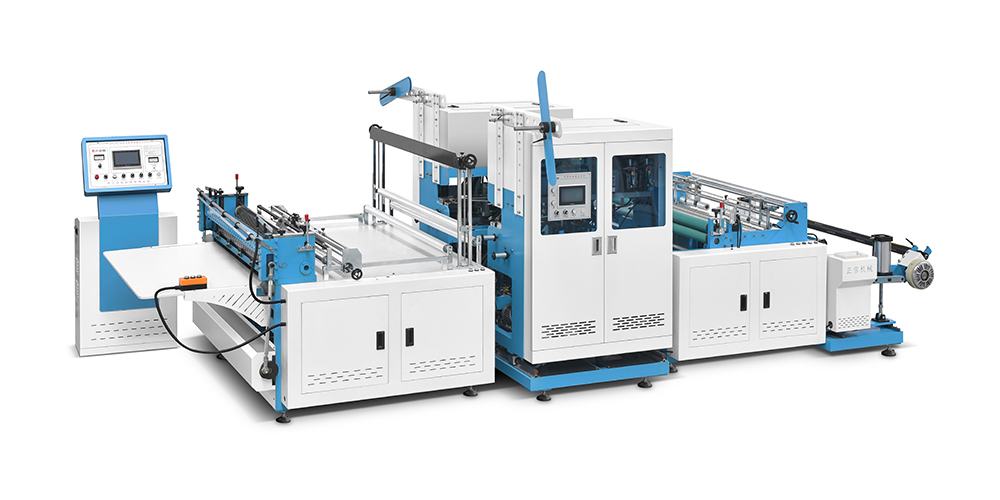

Part 1 Fabric roll Feeding part |
||
![]() |
![]() |
![]() |
Equiped with Photocell eye tracking, Auto rectifying deviation, Magnet powder tension control,folding sealing by ultrasonic welding, custom made round embossing mould. |
Part 2 Online double side soft handle sealing |
||
|
![]() |
|

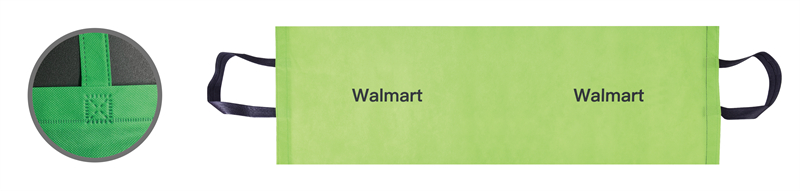

The function of welding the double handle loop on the material by 2 side handle sealing machine . it’s mainly used in the producing of manual non woven sealing bag , wine and git bag etc. |
Part 3 Finished product collecting part |
||
![]() |
![]() |
![]() |
Adopts quality cutting knife , wear-resistant, durable, product cutting is tidy and beautiful. |
Part 4 Operation Computer |
||
![]() |
![]() |
![]() |
Integrate all the electricity elements, adopts split-type design and PLC motion control as well as touch screen man-machine interface, easy operation and maintaining. |
Las principales variables técnicas:
Velocidad de producción |
30-70pcs/min |
Bolsa ancha |
500-1100mm |
Bolsa alta |
280-800mm |
Espesor del material del mango |
60-100g/㎡ |
Longitud del ciclo del mango |
380-600mm |
Bolsas cuantitativas |
35-120g/㎡ |
Fuente de alimentación |
380V/220V |
Potencia total |
13KW |
Dimensiones (L * W * H) |
6500×2300×1800mm |
